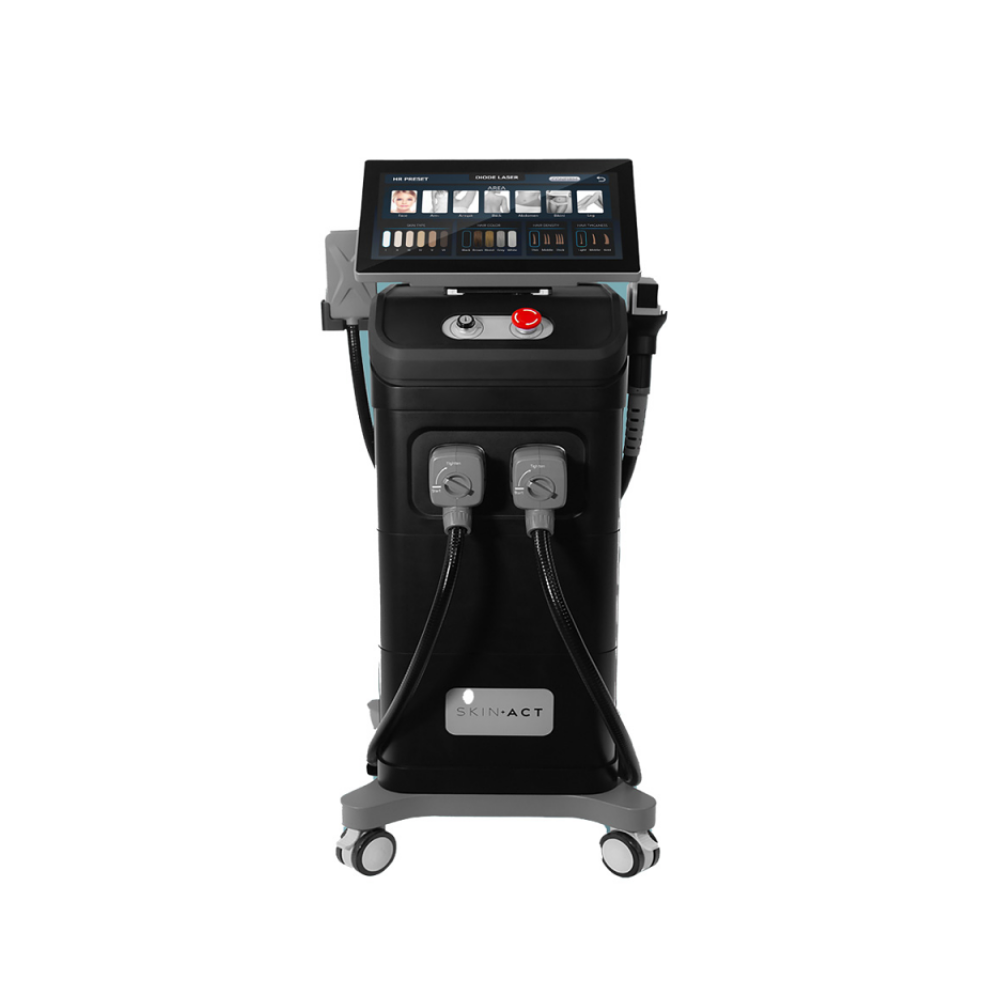

Diode Laser Hair Removal and Cooling System, FDA Registered

Diode Laser Hair Removal And Cooling System, FDA Registered

The Diode Laser Hair Removal And Cooling System combines the 808nm system, widely recognized as the gold standard wavelength for all hair types, with an integrated cooling plate, all within a single device.

Here's how it works

• The 1200W 808nm Diode Laser operates on the principle of selective light and heat absorption. It penetrates the epidermis layer and reaches the hair follicle roots. The laser is absorbed and transformed into heat, effectively destroying the hair follicle and surrounding oxygen tissue.

• Additionally, the advanced cooling system provides an anesthetic effect, safeguarding the epidermis layer against laser energy-induced burns. This dual approach ensures a safe and effective treatment.

• Under a lower energy density mode, the 1200W 808nm Diode Laser gently heats hair follicles to 48℃. Continuous gliding of the device handle causes hair follicle cells to lose their activity, ultimately leading to permanent hair removal. This process is not only fast and effective but also safe and virtually painless."

• The gold standard for permanent hair removal.

Advantages

• Fast hair removal of all skin types (I, II, III, IV, V, VI) and hair colors.
• High output power 1200W with sufficient and stable energy.
• 12 best-quality laser bars imported from “USA-COHERENT”. Long service life.
• Larger spot size. Higher laser power.

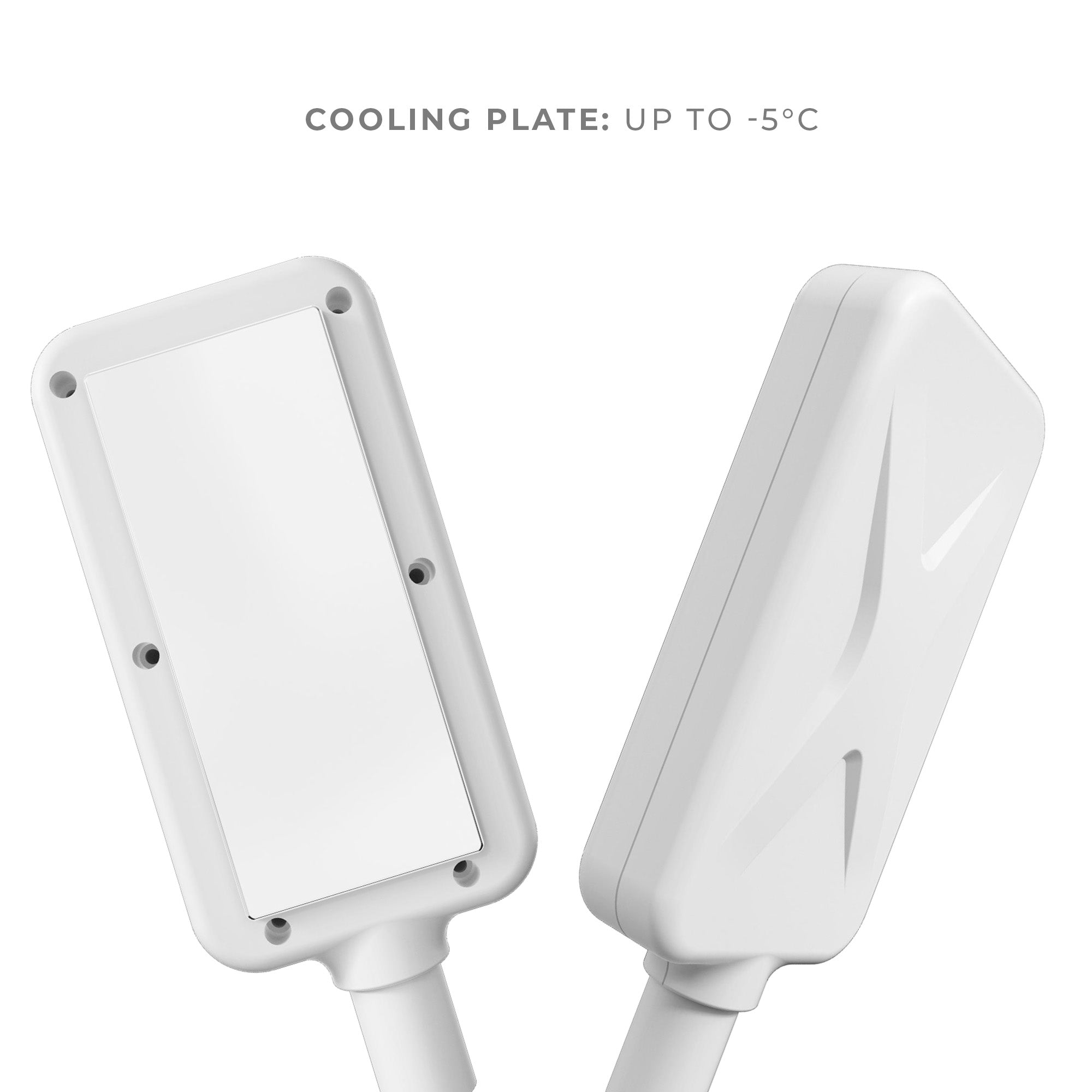

• Equipped with special skin cooling plate.

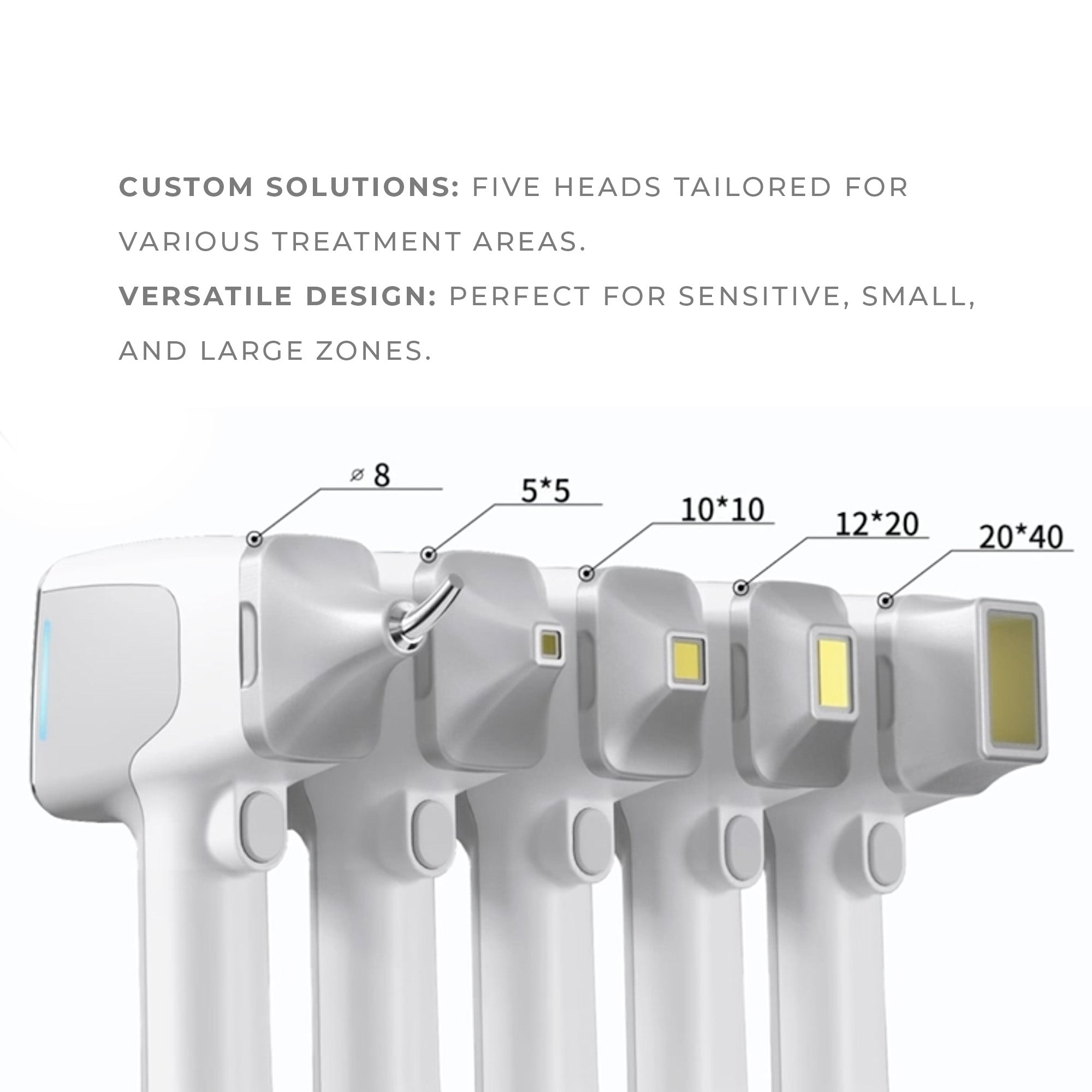

• Upgraded treatment handle with 5 removable treatment heads to meet the needs of different
• parts of the body.

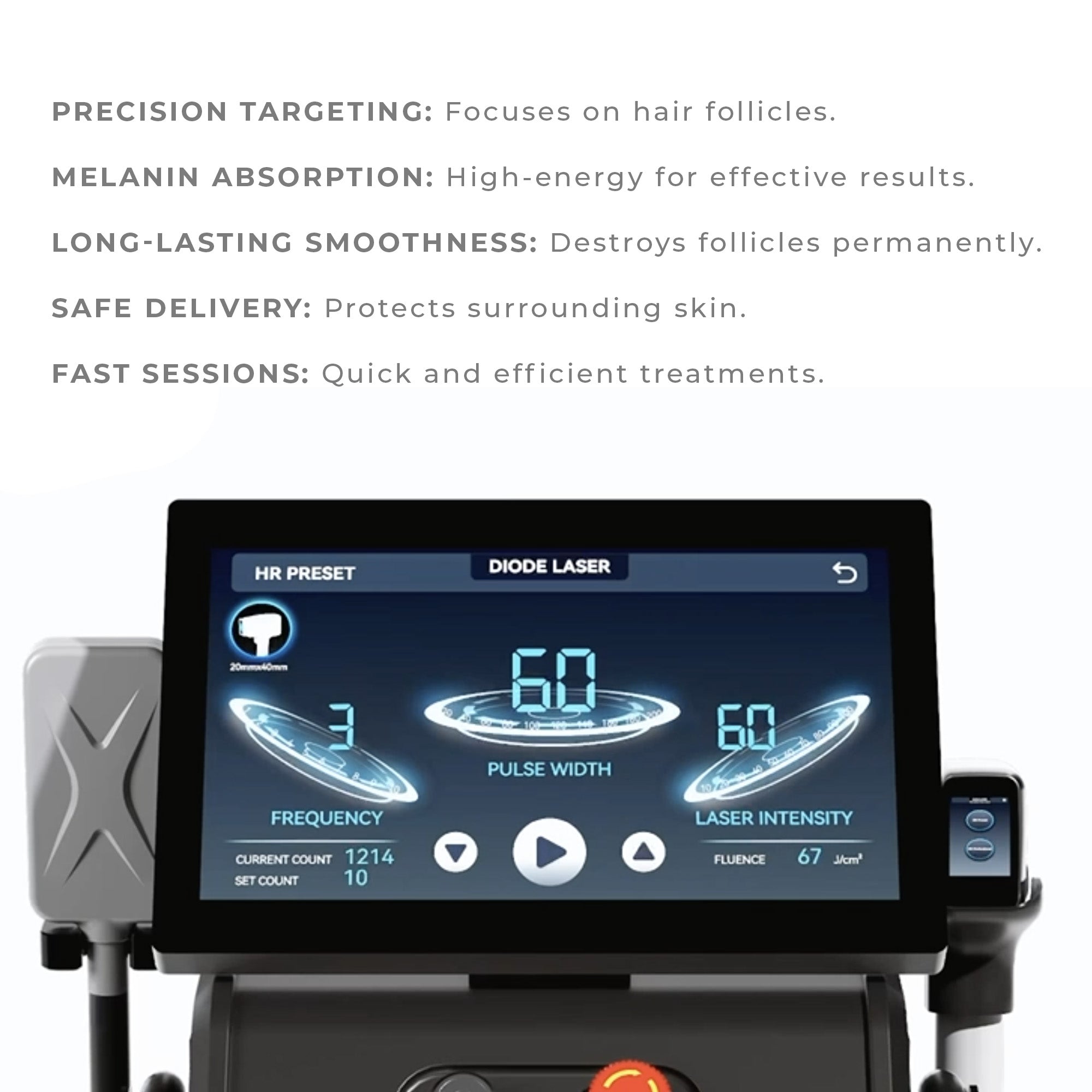

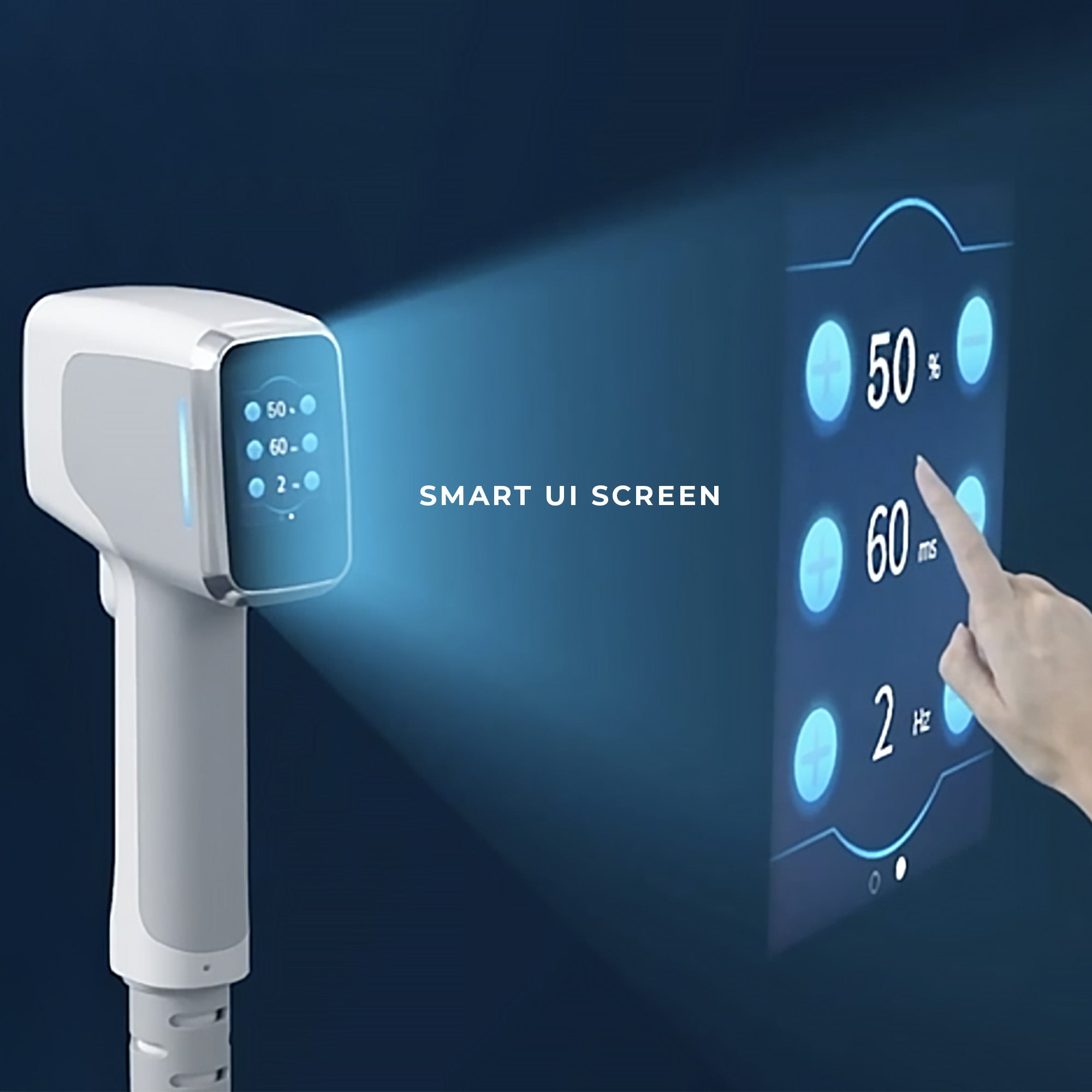

• Smart handpiece touch screen, easy to operate.

Specification

• Wavelength: 808nm
• Laser Power: 1200W
• Spot Size: Ф8, 5*5mm, 10*10mm, 12*20mm, 20*40mm
• Pulse Width: 10ms ~ 200ms
• Frequency: 1HZ ~ 10HZ
• Fluence: 0 ~ 120J/cm2
• Laser Intensity: 5% ~ 100%
• Contact Temperature: -5℃ ~ 5℃

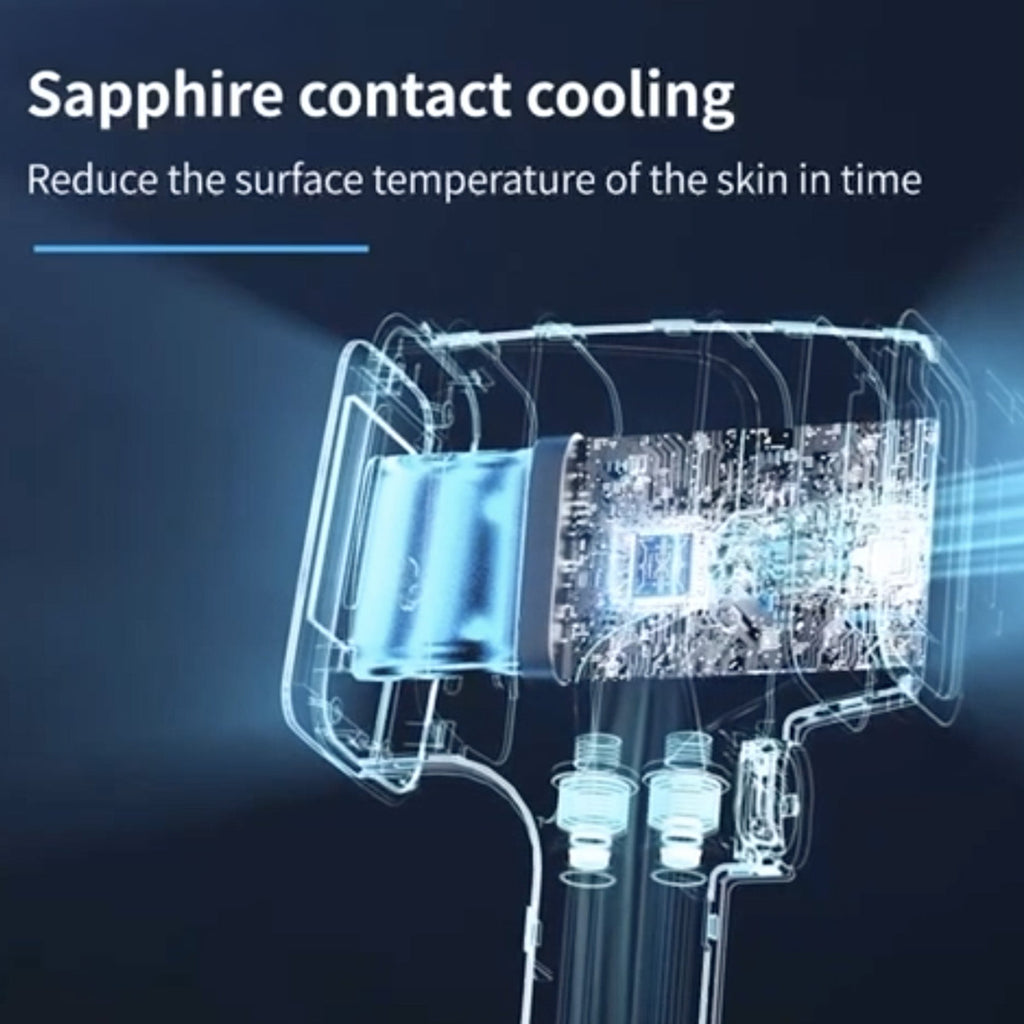

• Cooling System: Air + Water + TEC / Semiconductor + Sapphire
• Screen: 15" color touch display
• Voltage: AC 220V/50Hz, 110V/60Hz
• Package Size: 112*72*48cm
• Package Weight: 72kg

What's included

1. Diode Handle 1
2. Removable Head 5
3. Cooling Plate 1
4. Water Funnel, Tube and
5. Connectors 1
6. Protective Glasses 1
7. Protective Goggles 1
8. Power Cord 1
9. Chain Safeguard 1
10. Foot Pedal 1
11. Key

Download Manual
